Hydro-JetTM Formation Systems
Hydro-Jet Formation Specialties are exclusive patented systems available only from PSI and our affiliates!
![](photos/formation/blade1.jpg) |

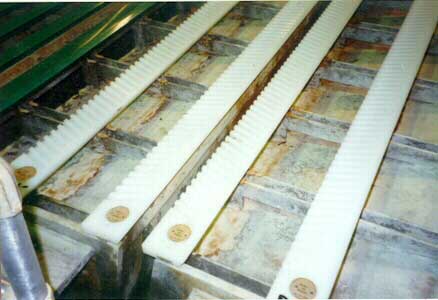

Hydro-Jet CD Enhancement Foils
New! OSCI-FLO Power Formation Systems
CROSS X Multi-Bank
Hydro Formation Systems |

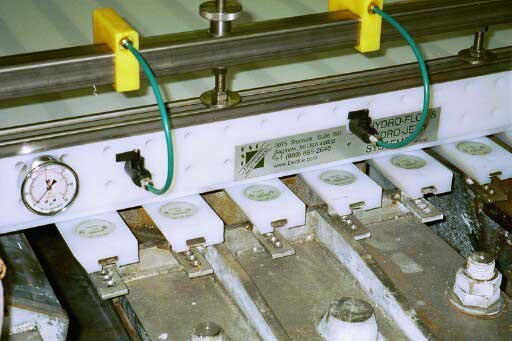

Hydro-Jet CD Foils fitted with an OSCI-FLO Power Formation Unit.
OSCI-FLO Power Formation System features a hydraulic,
speed adjustable, counter-oscillating drive unit to enhance
fiber orientation qualities. |
![](photos/formation/rwside1.jpg) |
![](photos/formation/jetend1.jpg)

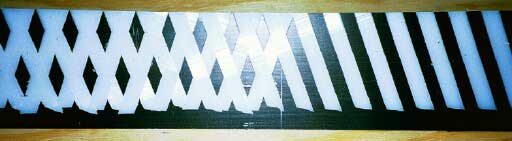

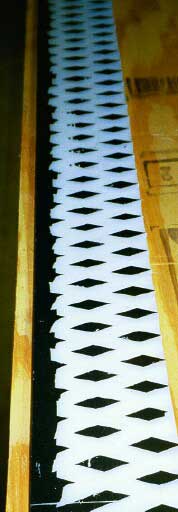

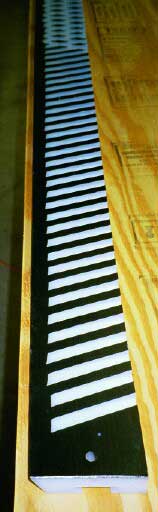

Hydro-Jet Foil on left and Cross X on right.
|
Pictured above is Cross X machining on the left and Hydro-Jet machining on the right.
![](photos/formation/jetfront1.jpg)

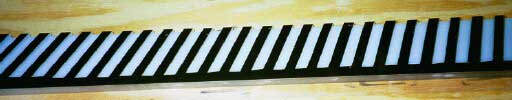

Front view of the Cross X CD Foil
![](photos/formation/xfront1.jpg)
Front top view of the Hydro-Jet Foil
![](photos/CrossXFoils.jpg)
|

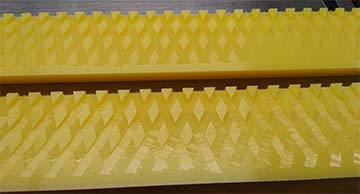

Formation improvements are instant, utilizing CrossX Formation Systems!
PSI has designed a line of formation enhancement tools, from the CrossX™ Multi-Bank Formation System to our Hydro-Jet™ Formation CD Foils, equipped with an oscillation unit that counter-oscillates each foil unit.
These systems were created to assist the papermaker produce a more consistent and better formed sheet, economically.

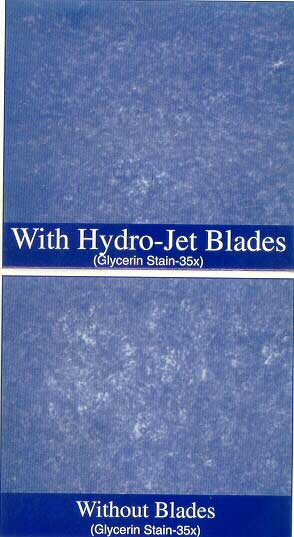

![](photos/formation/graph1.jpg)
|
Hydro-Jet™ CD Foils are another exclusive offering from PSI |
These Units provide cross direction fiber orientation without removing more water from the sheet. This helps the entire table function at a higher level. |
|
